Aqua Signal Series 34 LED Pedestal

Name: Aqua Signal Series 34 LED Pedestal
SKU: P-02-3856-001
Availability: BackOrder

Aqua Signal Series 34 LED Pedestals can be used on vessels < 20 m (< 50m for All Round 360° Lights). Visibility 2nm (3nm Masthead). Voltage range 12v to 24v. Wattage 5w (Tricolour), 1.5w (Anchor).

Options

Clear

SKU: P-02-3856-001

Category: Lighting, Navigation Lights

Description

Aqua Signal Series 34 LED Pedestals can be used on vessels < 20 m (< 50m for All Round 360° Lights). Visibility 2nm (3nm Masthead). Voltage range 12v to 24v. Wattage 5w (Tricolour), 1.5w (Anchor).

Housing material polycarbonate, seawater resistant, UV protected, non-corrosive, non-magnetic, shock resistant. Available in black or white case.

Also available with an Quick Fit connection system. Deck-mount, pre-wired with 200 mm cable.

Electric inverse polarity protection. Optics patented optics are UV and saltwater resistant requiring only a single LED per light source

Approvals USCG, IMO, RINA, MCA, BSH, GL, A16, CE

Additional information

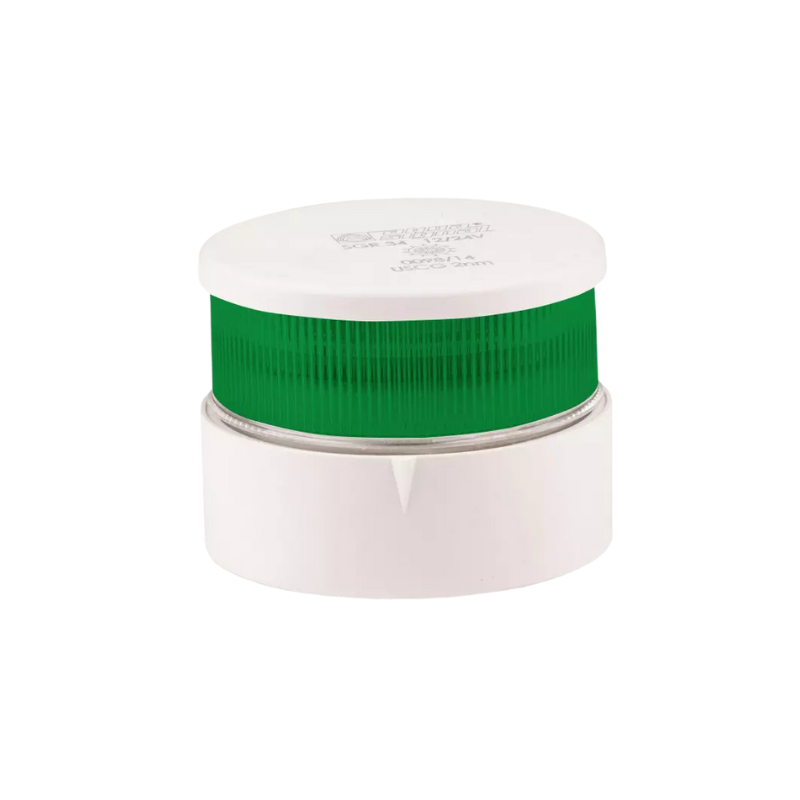

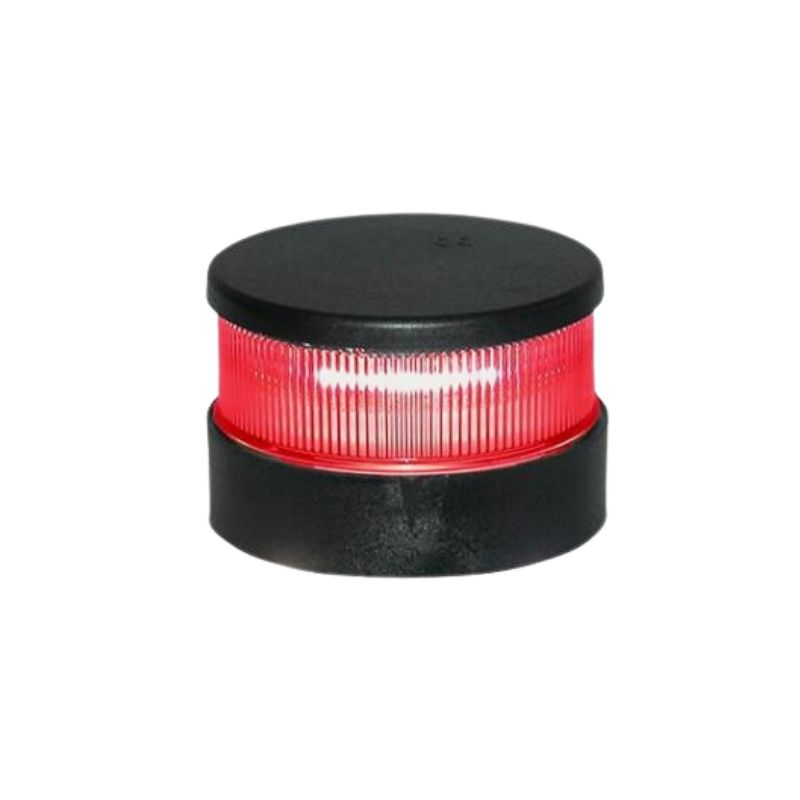

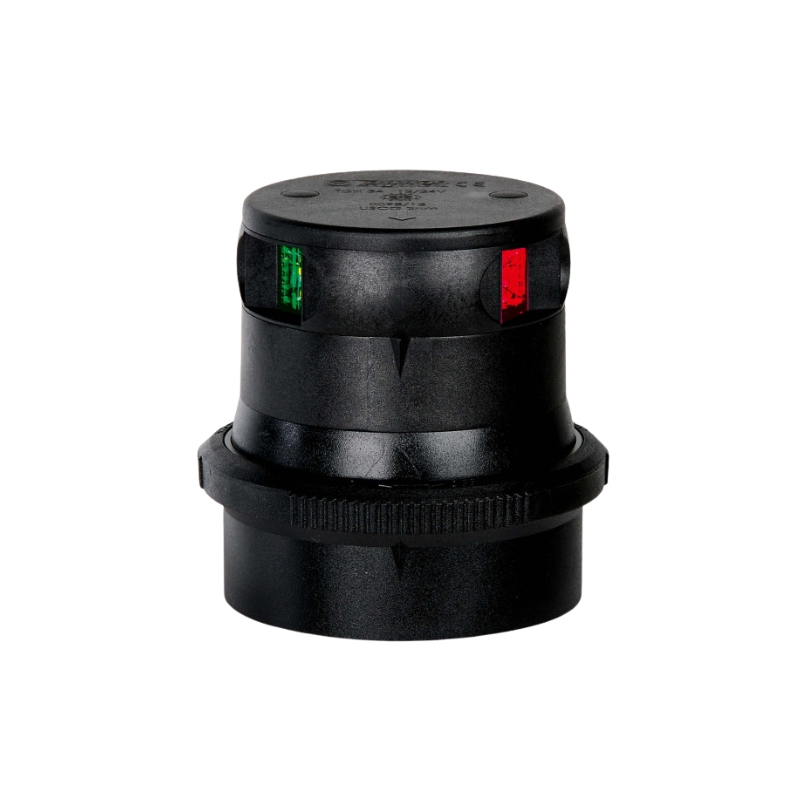

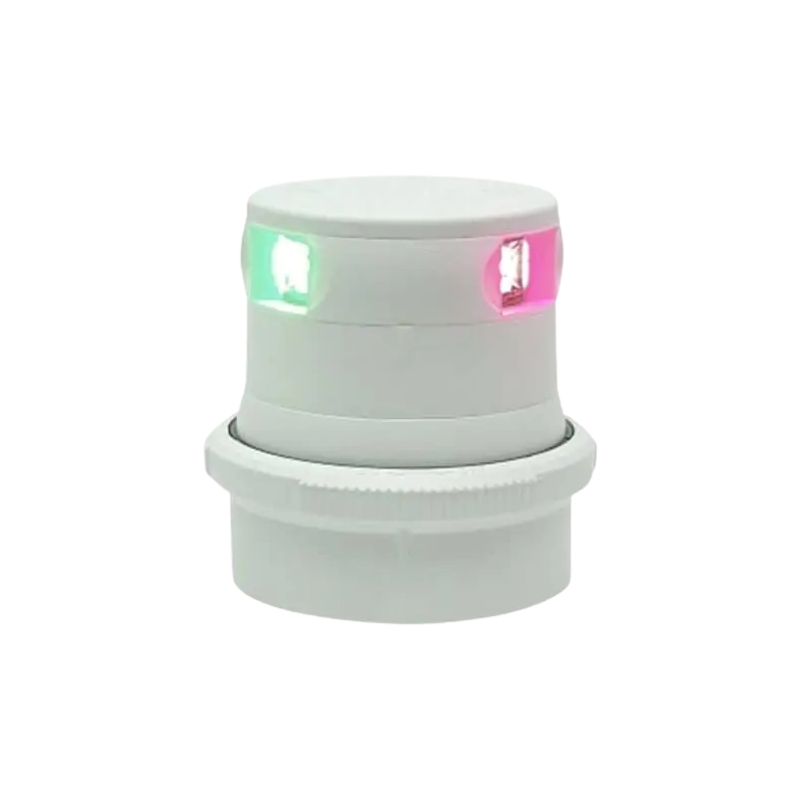

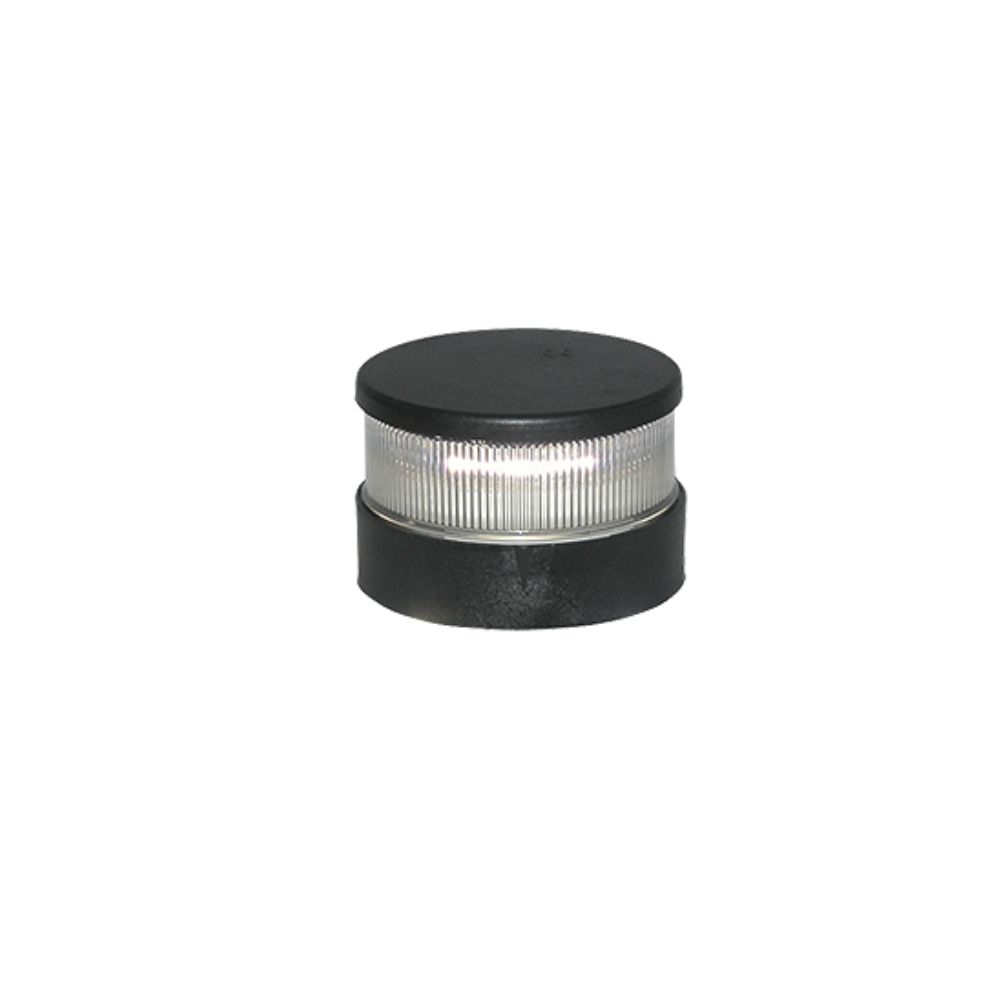

Light Type	360 Deg Green, 360 Deg Red, 360 Deg White, Masthead, Masthead Combination, Tri-Colour, Tri-Colour Combination
Brand	02 – Aqua-Signal
Voltage	12v, 24v
Housing	Black, White

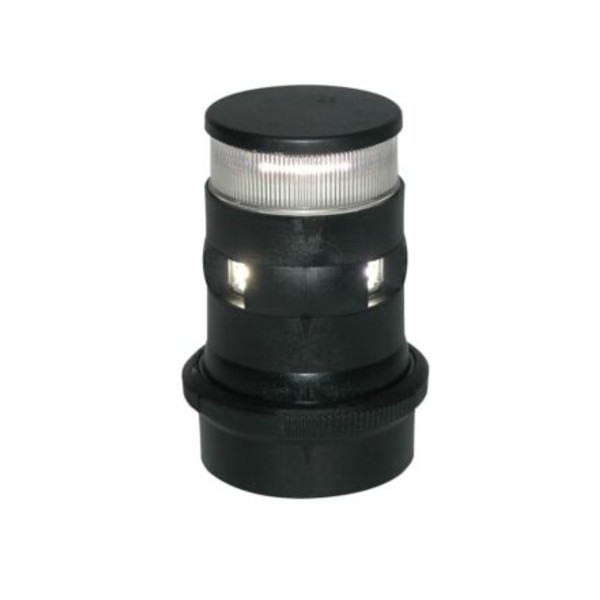

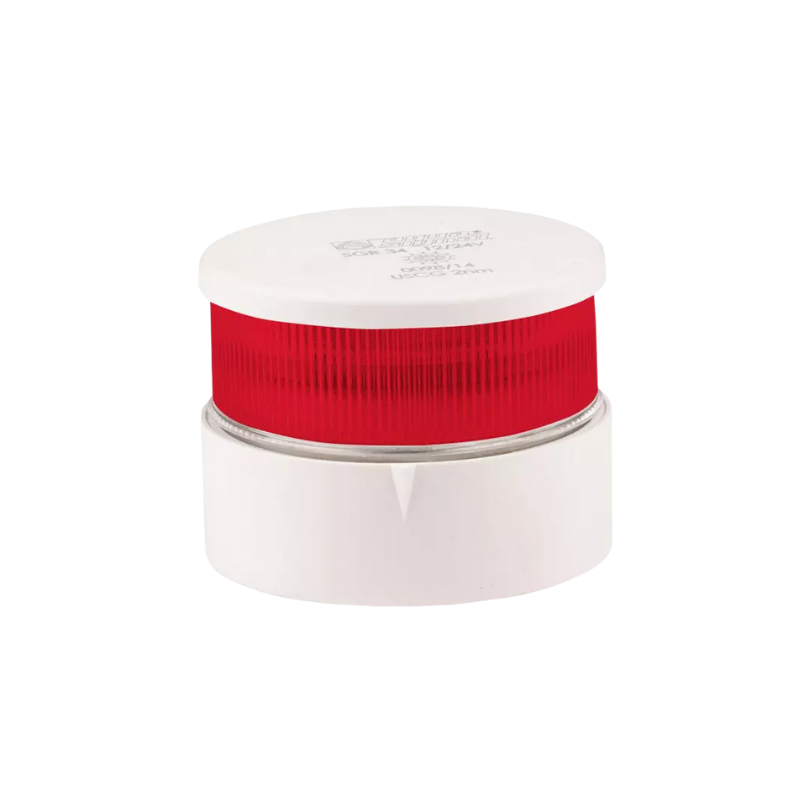

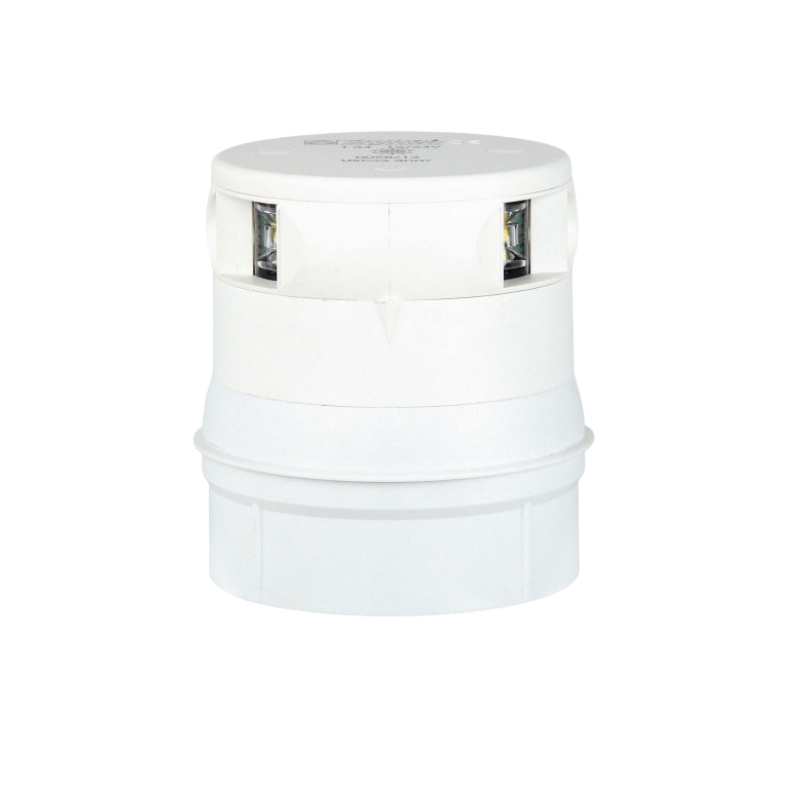

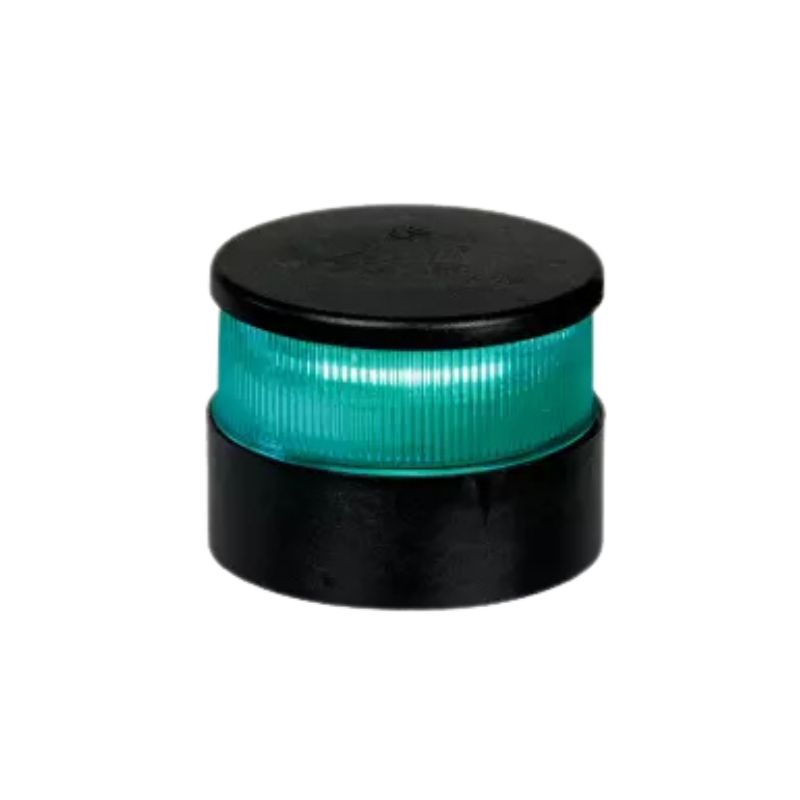

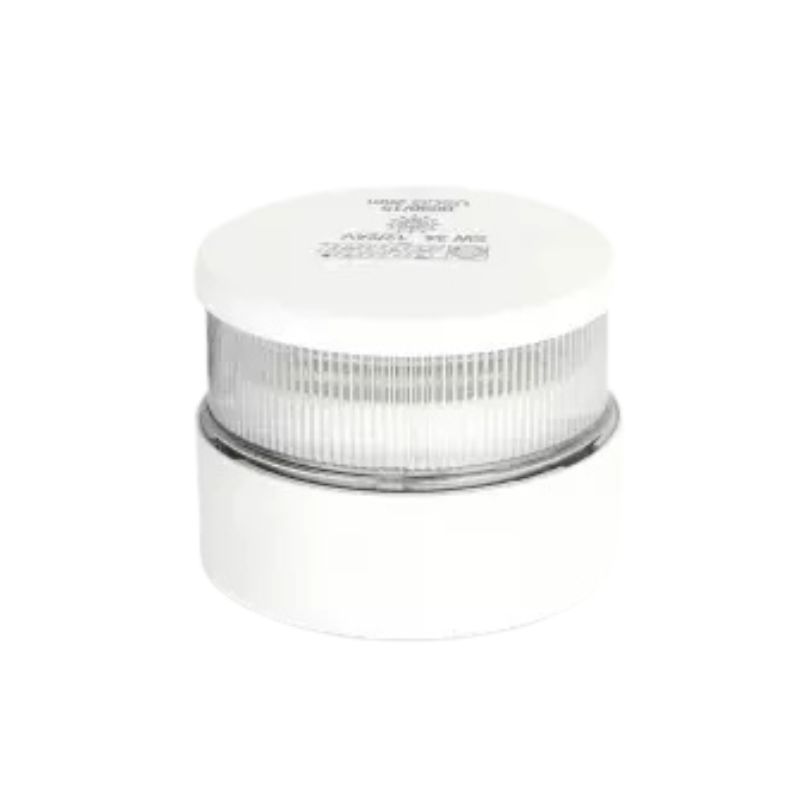

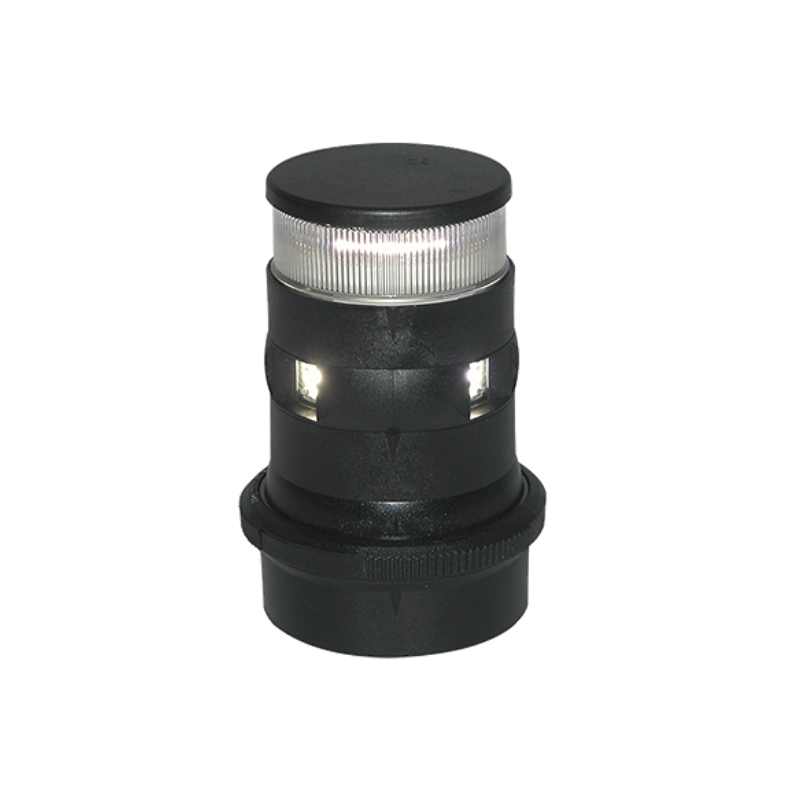

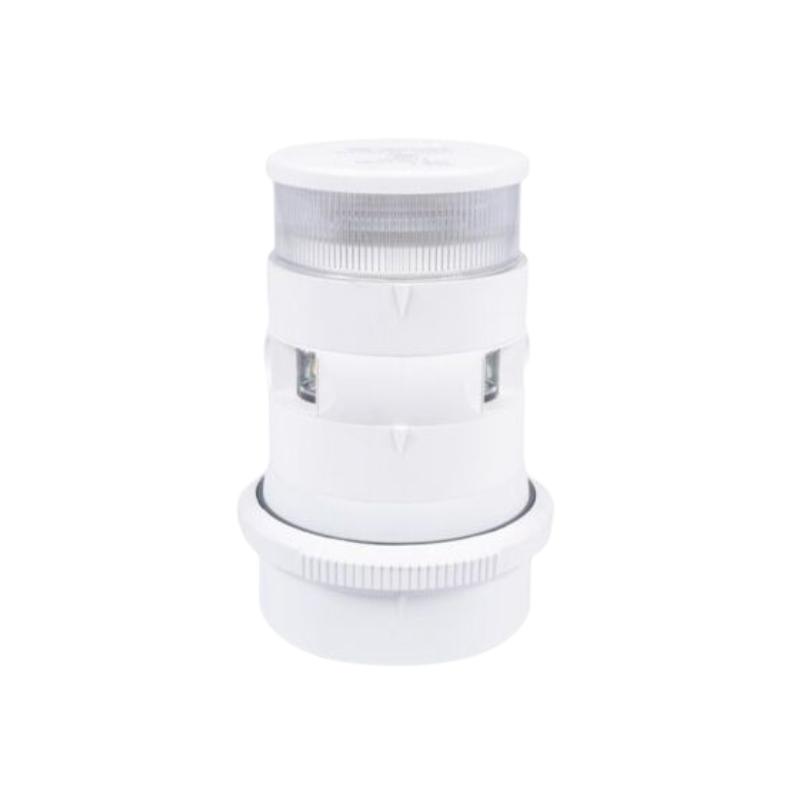

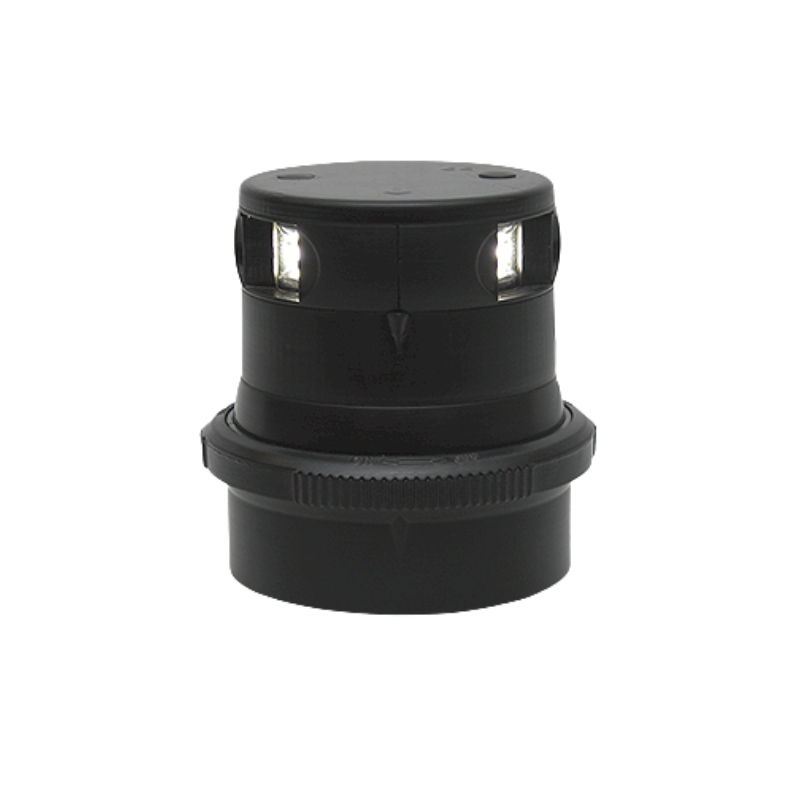

Options	S34 LED Pedestal – All Round Green 12/24v (Black Case), S34 LED Pedestal – All Round Green 12/24v (White Case), S34 LED Pedestal – All Round Red 12/24v (Black Case), S34 LED Pedestal – All Round Red 12/24v (White Case), S34 LED Pedestal – All Round White 12/24v (Black Case), S34 LED Pedestal – All Round White 12/24v (White Case), S34 LED Pedestal – Masthead 12/24v (Black Case), S34 LED Pedestal – Masthead 12/24v (White Case), S34 LED Pedestal – Masthead/ARW 12/24v (Black Case), S34 LED Pedestal – Masthead/ARW 12/24v (White Case), S34 LED Pedestal – Tricolour 12/24v (Black Case), S34 LED Pedestal – Tricolour 12/24v (White Case), S34 LED Pedestal – Tricolour/ARW 12/24v (Black Case Quick Fit), S34 LED Pedestal – Tricolour/ARW 12/24v (White Case Quick Fit)
Mount	Deck Mount
Visibility	2nm, 3nm
Approvals	BSH, CE, EMC, GL, IMO, MED Wheel Mark
