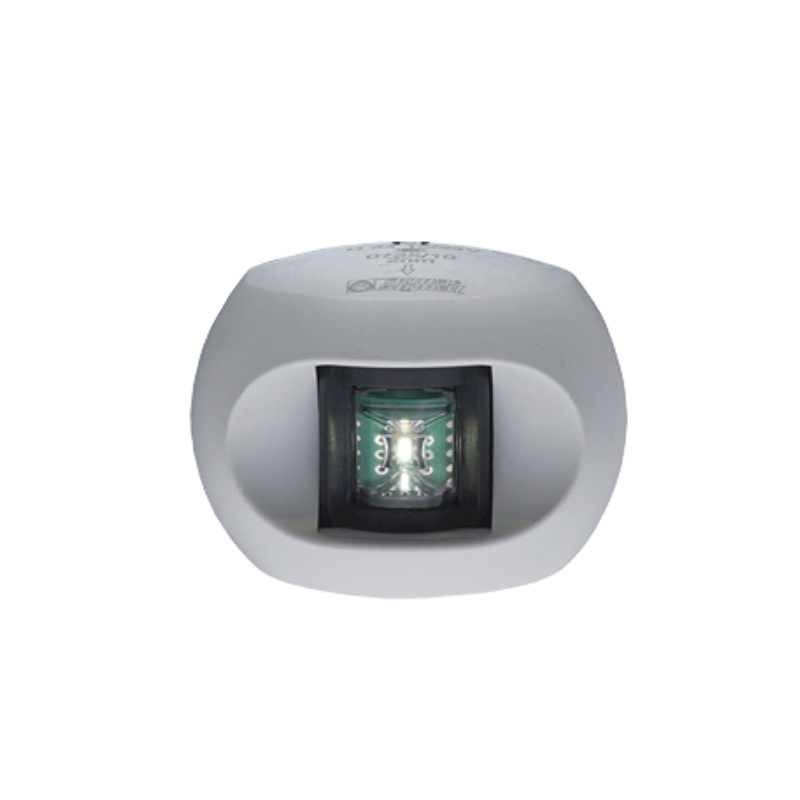

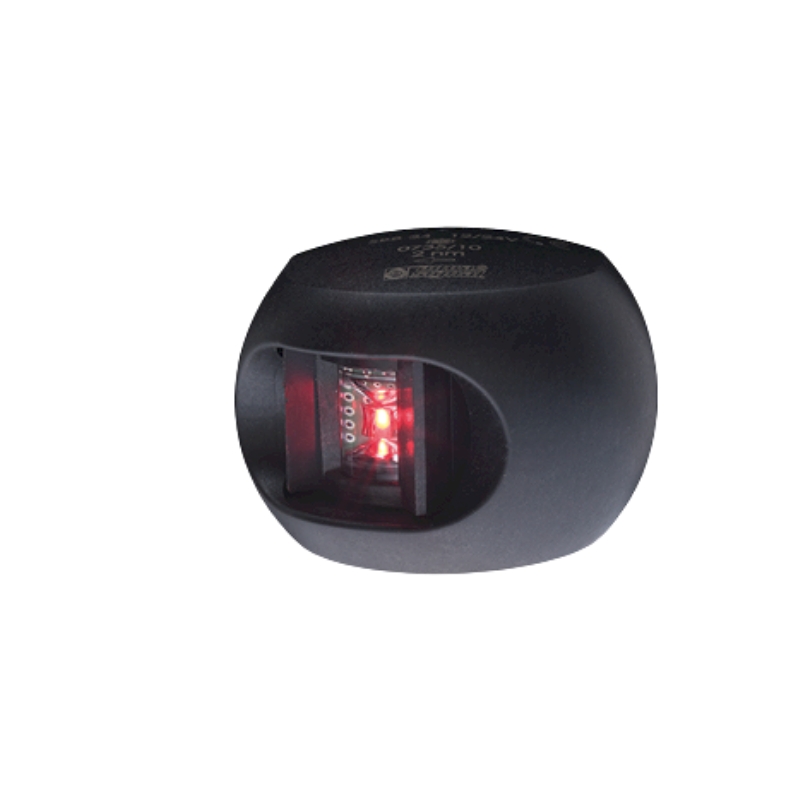

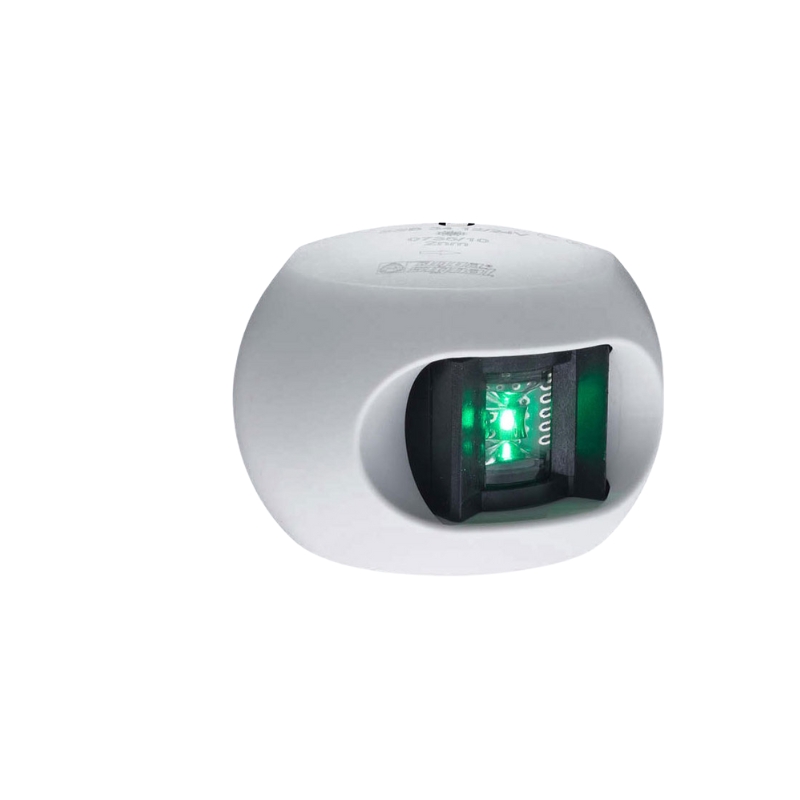

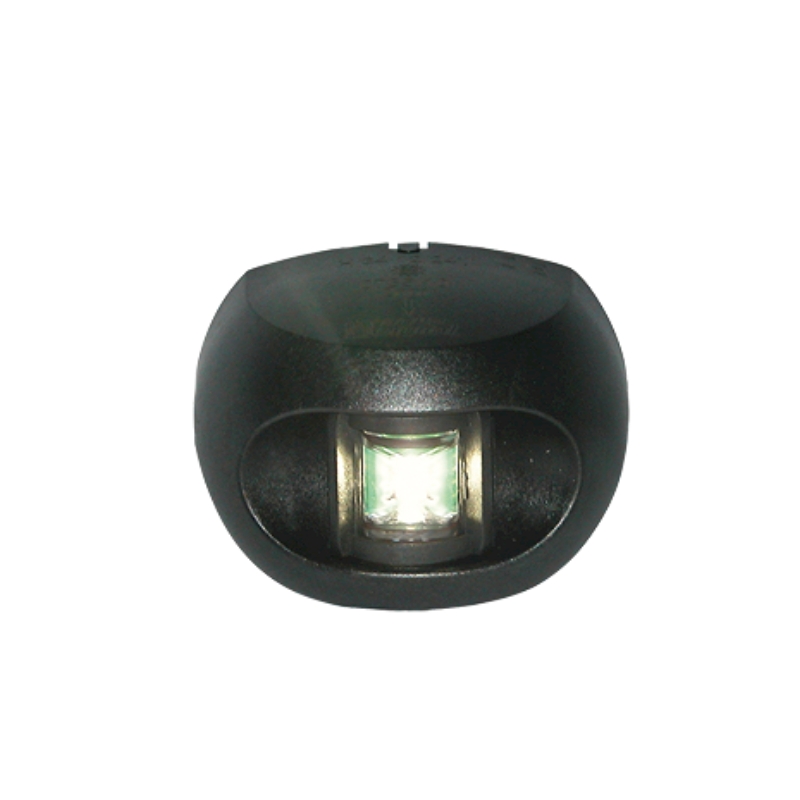

Aqua Signal Series 34 LED

Description

The navigation lights fulfil all requirements of the “International Regulations for Preventing Collision at Sea 1972 (COLREG)”, published by the international Maritime Organization (IMO) and local rules.

Electrical specification

12 – 24 V DC, +/-20%. Mulivolt, invers polarity protection included, EMC tested, with degradation control, LED(s) included, 2 x 1.5 mm², self-protective insulation, class II.

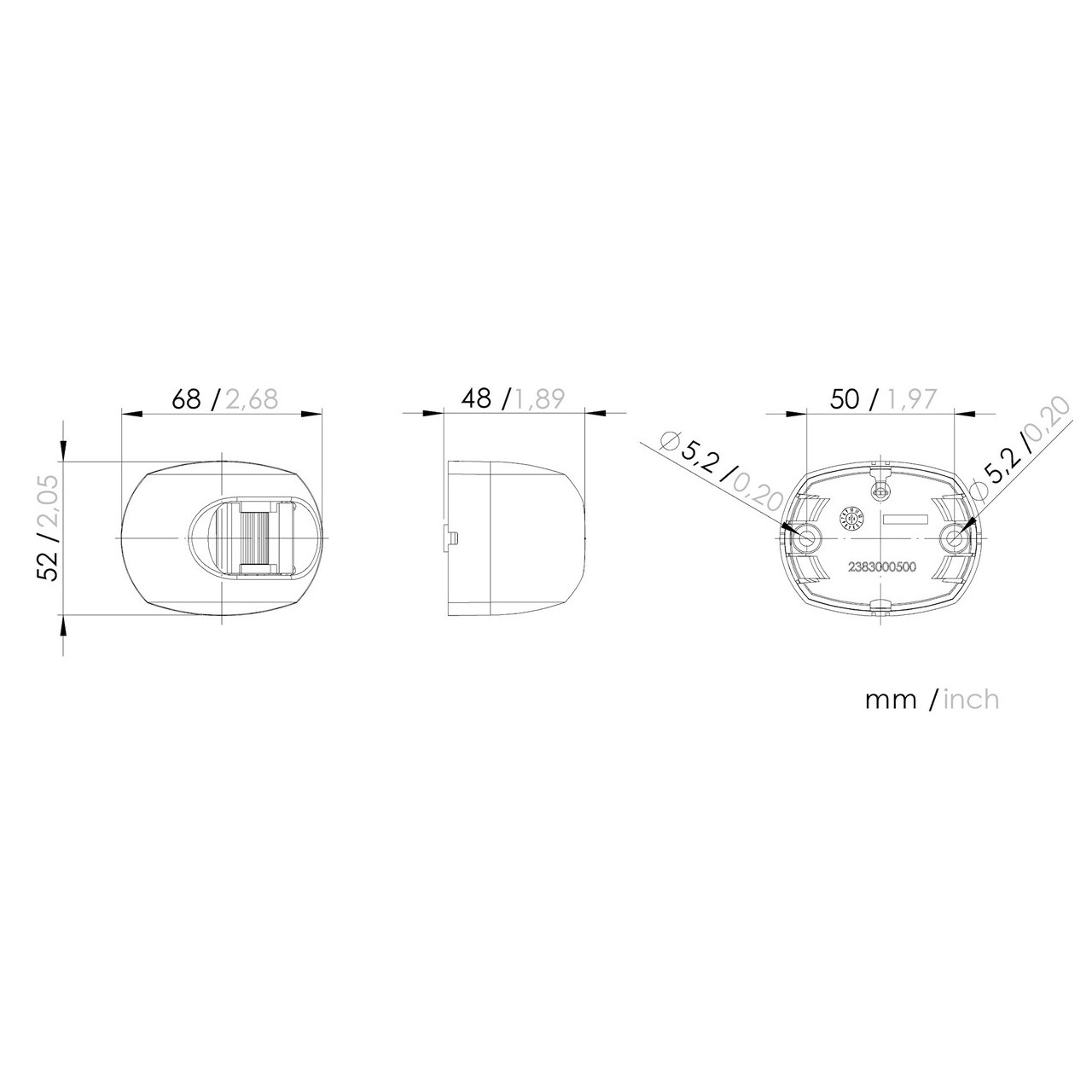

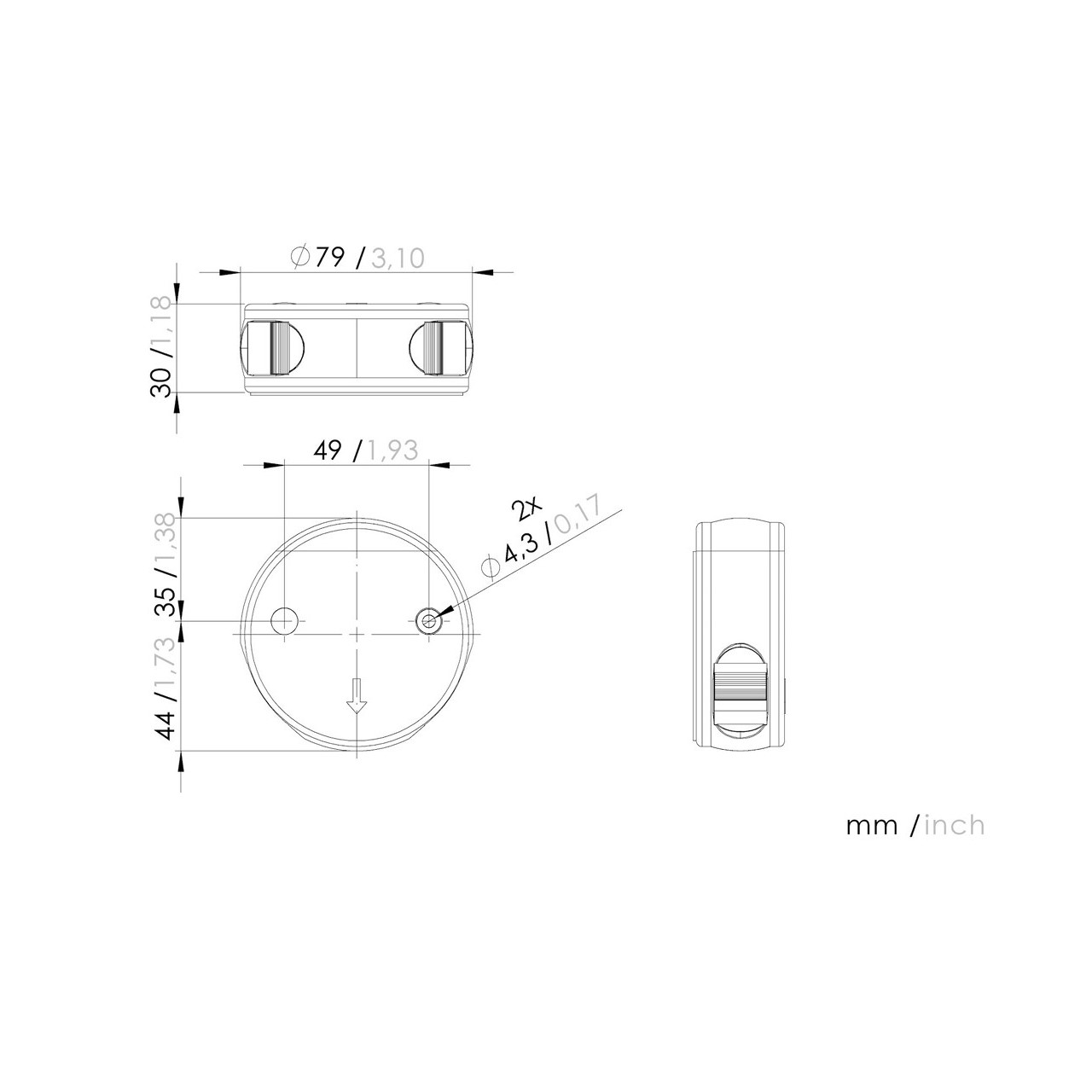

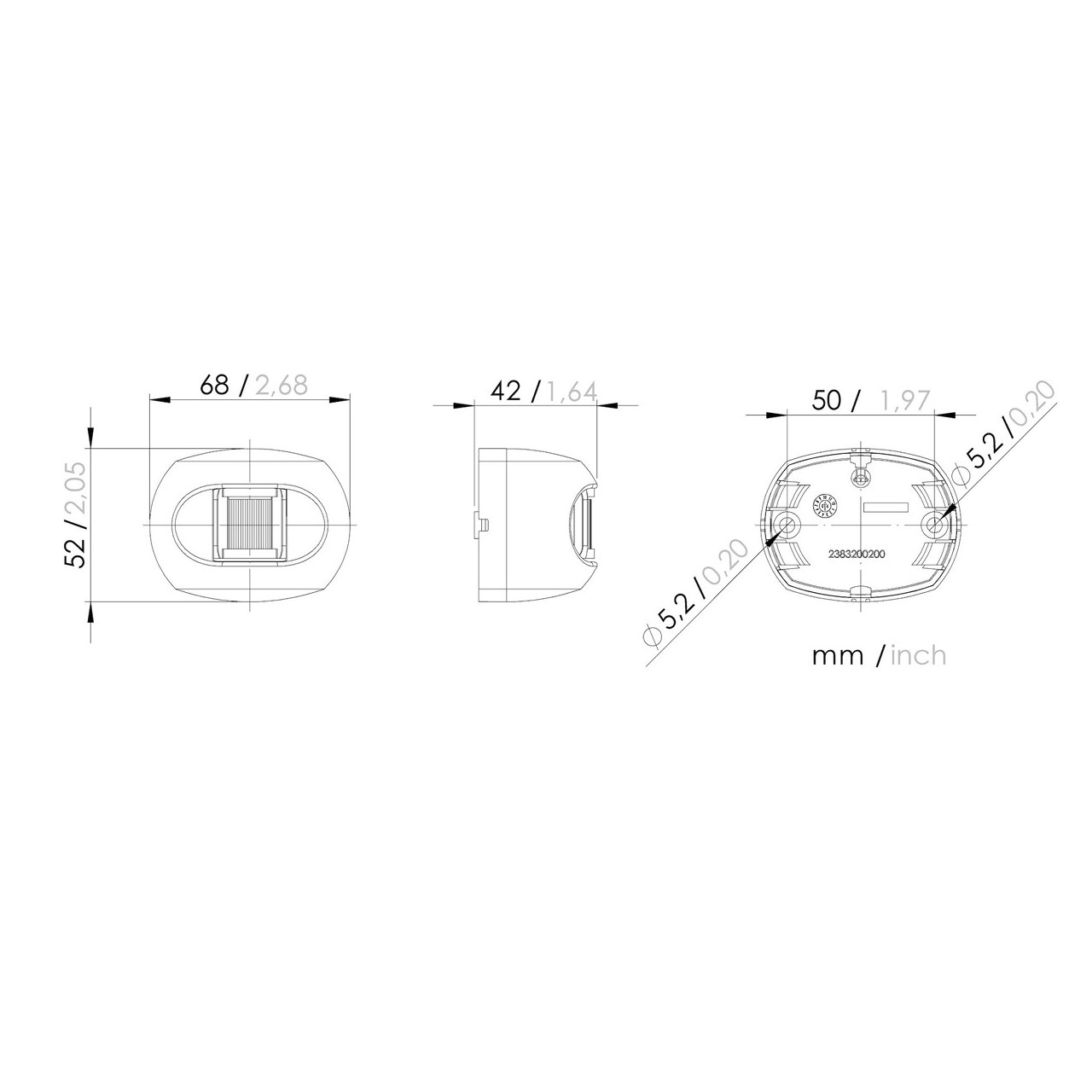

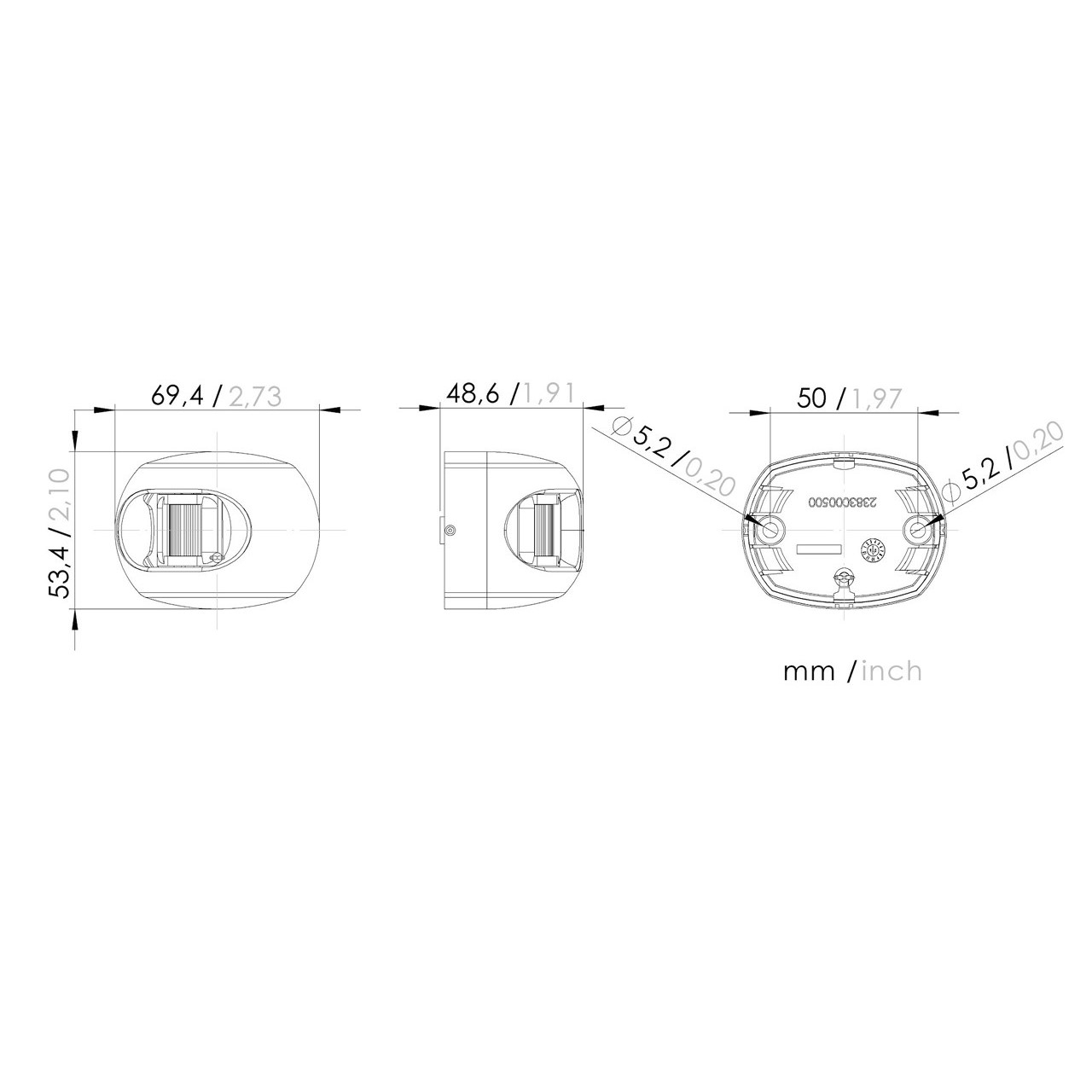

Mounting

Side-mount, pre-wired with 140 mm cable 2 x 0.30 mm2/ AWG 22, 2-hole mounting.

Optic

Innovative lens technology for wide visibility with one or twolight-emitting diodes (depending on article).

Housing

Polycarbonate, seawater resistant, UV protected, non-corrosive, non-magnetic, impact and shock resistant.
