Stainless Steel Torque Hinge

Name: Stainless Steel Torque Hinge
SKU: P-10A-88384
Availability: BackOrder

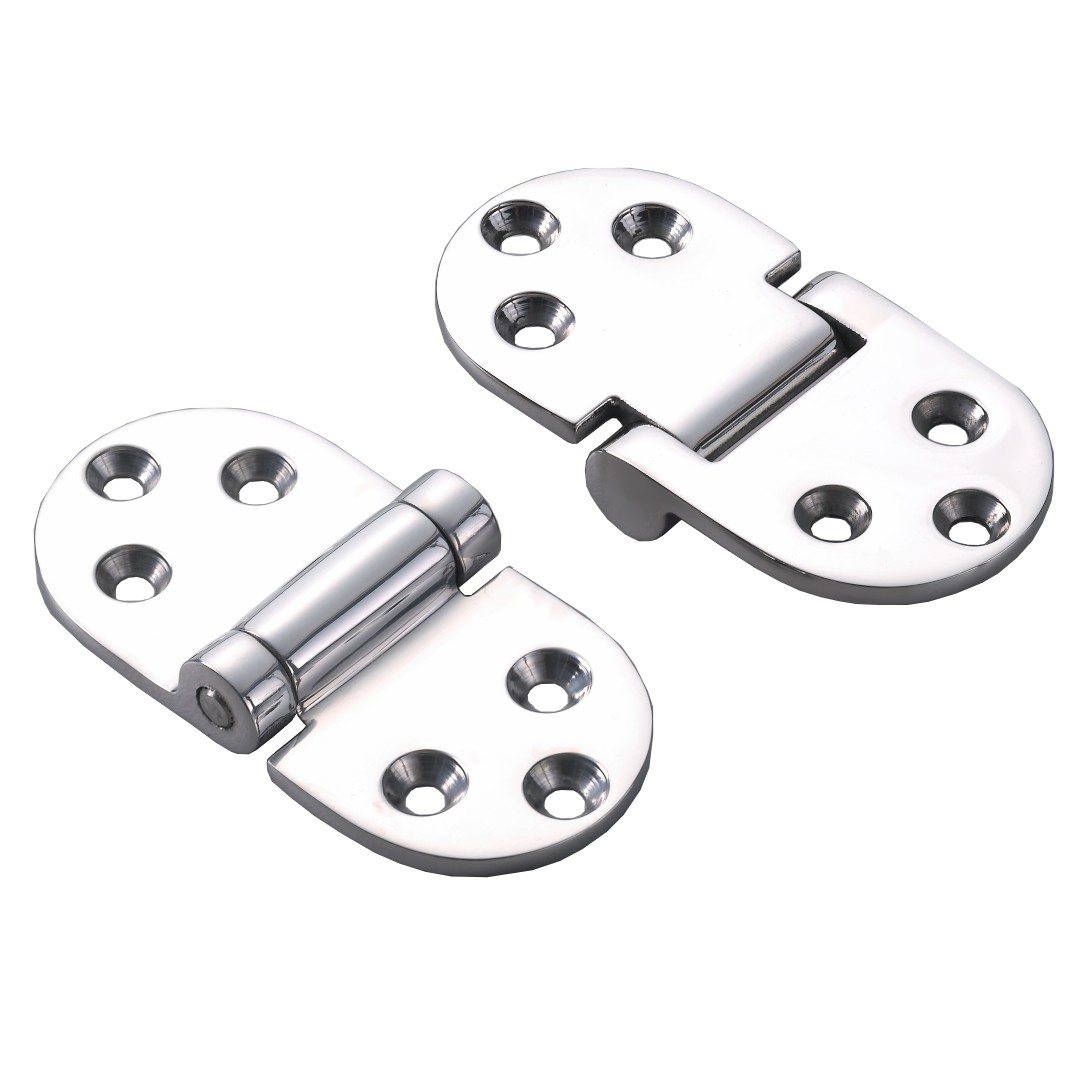

Cast 316 Stainless Steel with constant torque to hold hatch, door or cover in any desired position.

Options

Clear

SKU: P-10A-88384

Description

2 hinges can hold a 2kg hatch that is 40cm wide. Tested to 20’000 cycles with less than 20% loss of friction. #8 CSK Screw.

10A-88384 – 67mm x 38mm (Top Pin) – 30 KGF-CM +/- 15%

10A-88384R – 67mm x 38mm (Under Pin) – 30 KGF-CM +/- 15%

10A-88393 – 38mm x 38mm (Top Pin) – 30 KGF-CM +/- 15%

10A-88393R – 38mm x 38mm (Under Pin) – 30 KGF-CM +/- 15%

10A-86394 – 76mm x 38mm (Top Pin) – 30 KGF-CM +/- 15%

10A-86394R – 76mm x 38mm (Under Pin) – 30 KGF-CM +/- 15%

10A-88395 – 51mm x 76mm (Top Pin) – 40 KGF-CM +/- 15%

10A-88395R – 51mm x 76mm (Under Pin) – 40 KGF-CM +/- 15%

Options	67mm x 38mm (Top Pin), 67mm x 38mm (Under Pin), 38mm x 38mm (Top Pin), 38mm x 38mm (Under Pin), 76mm x 38mm (Top Pin), 76mm x 38mm (Under Pin), 51mm x 76mm (Top Pin), 51mm x 76mm (Under Pin)
